CN ePortfolio (Course-level) LTI 1.3 Setup Guide for Moodle

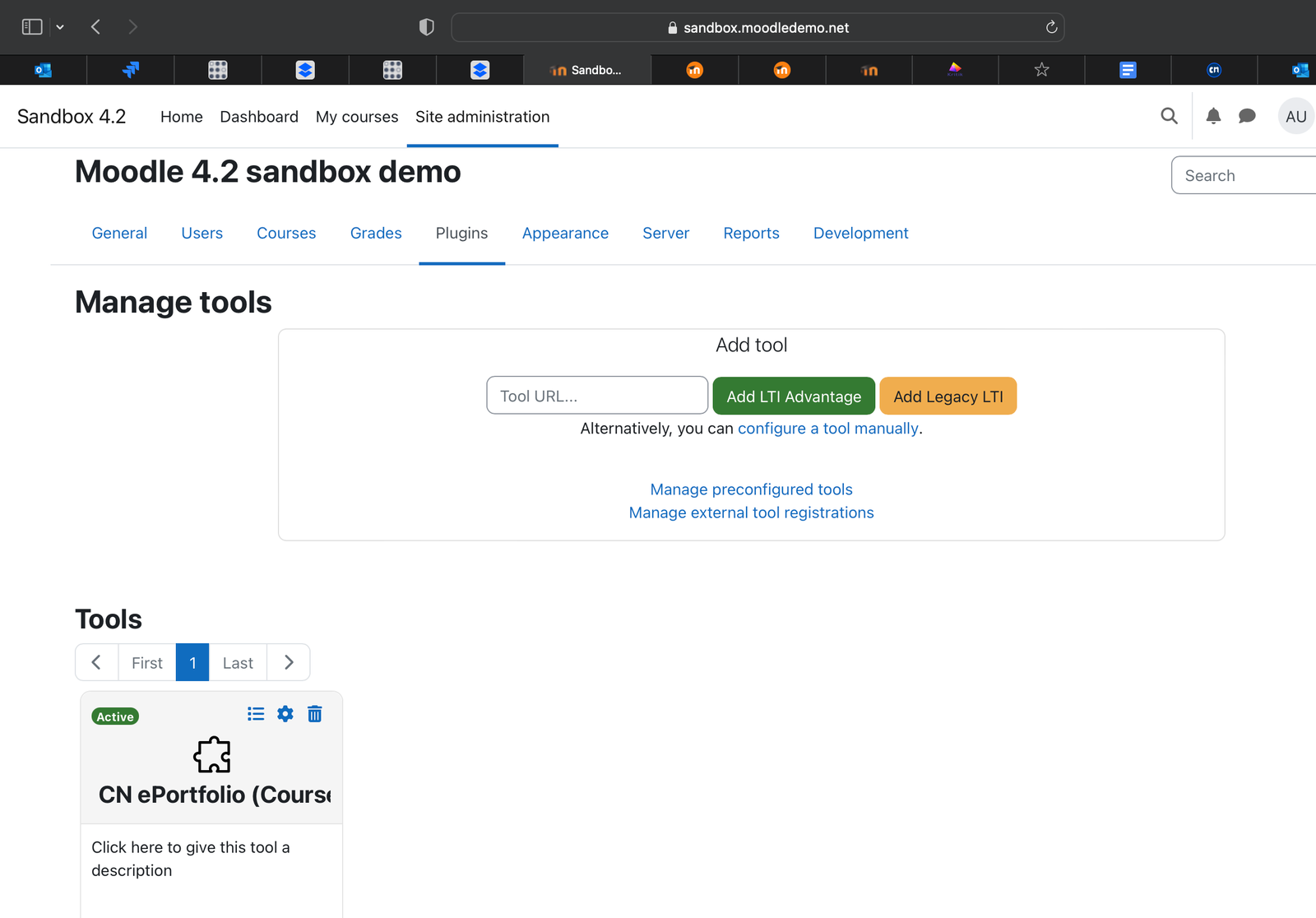

Step 1: Log into your Moodle (admin account) and navigate to Site Administration. Hit Plugins, then Manage Tools.

Step 2: Under Manage Tools, click Configure a tool manually.

Step 3: Please fill out the form with the details below.

Under the Tool Settings section:

1. Name the tool: CN ePortfolio (Course-level)
2. Tool URL:  https://www.thecn.com/program/lti1p3/tool_launch/portfolio_course
3. LTI version: LTI 1.3.
4. Public key type: Keyset URL.
5. Public keyset: paste in https://www.thecn.com/program/lti1p3/tool_jwks
6. Initiate login URL: paste in https://www.thecn.com/program/lti1p3/tool_oidc_init/portfolio_course
7. Redirection URI(s): paste in https://www.thecn.com/program/lti1p3/tool_launch/portfolio_course
8. Tool configuration usage: Select 'Show in activity chooser and as a preconfigured tool'
9. Default Launch Container: New window. Check off: Supports Deep Linking.

Under the Services section on this page:

1. IMS LTI Assignment and Grade Services: Use this service for grade sync and column management.
2. IMS LTI Names and Role Provisioning: Use this service to retrieve members’ information as per privacy settings.
3. Tool Settings: Use this Service.

1. Share launcher's name with tool: Always.
2. Share launcher's email with tool: Always.
3. Accept grades from the tool: Always.

Default organization ID: For the CN ePortfolio integration it can be left blank.

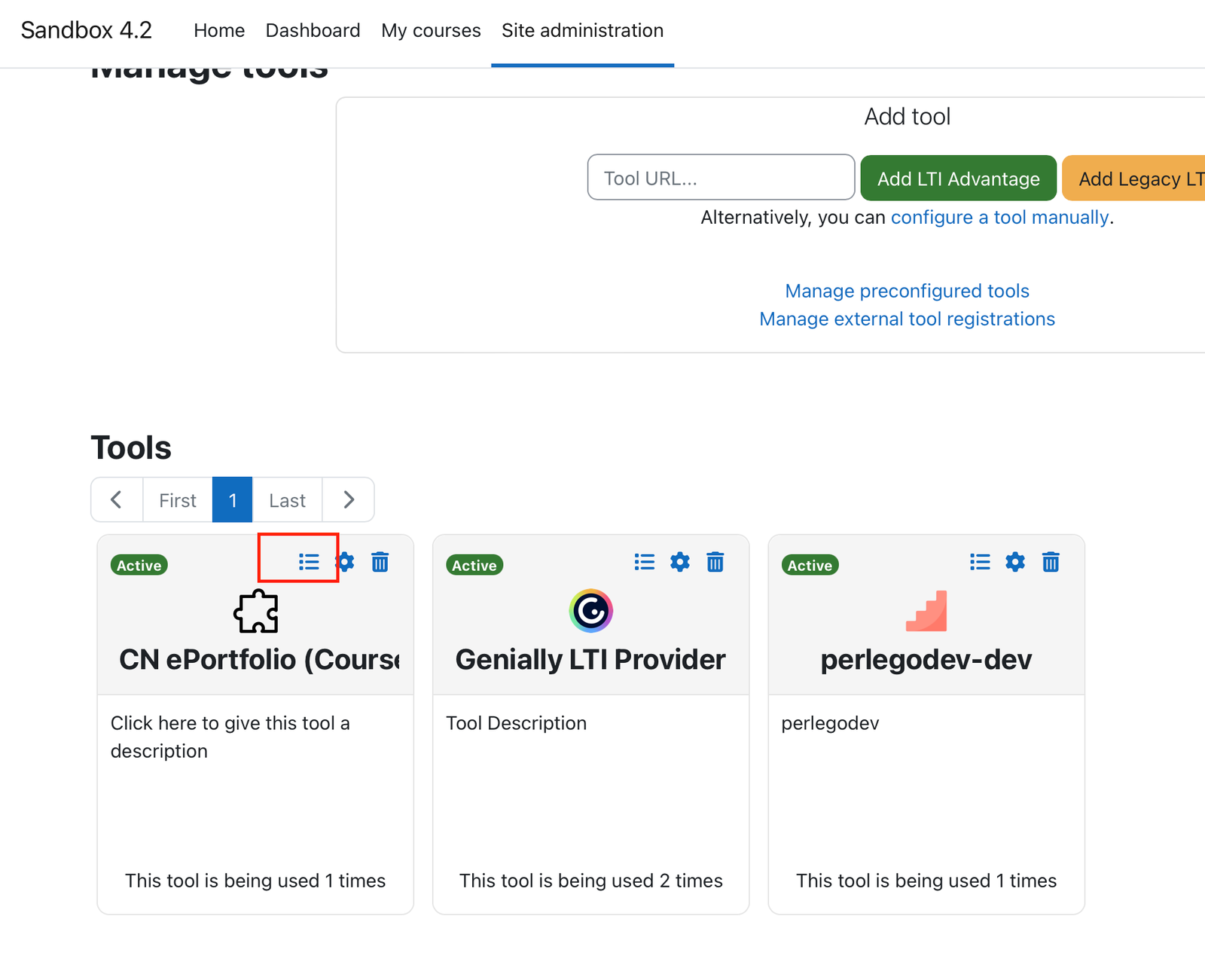

Step 4: Hit Save Changes. You should now see the tool you just created towards the bottom of the page.

Step 1: Click My Courses -> Select Manage courses

Step 2: Step 2: Select a course and edit it.

Step 3: Click “ Add an activity or resource”. Then choose “External tool” -> Select CN ePortfolio (Course level) you have added before (If you don't see it, select External tool)

Step 4: Input the following information and save the info:

• Select the Activity name as CN ePortfolio (Course-level)
• The pre-configured tool has to be selected as CN ePortfolio (Course-level)
• Tool URL can be left empty

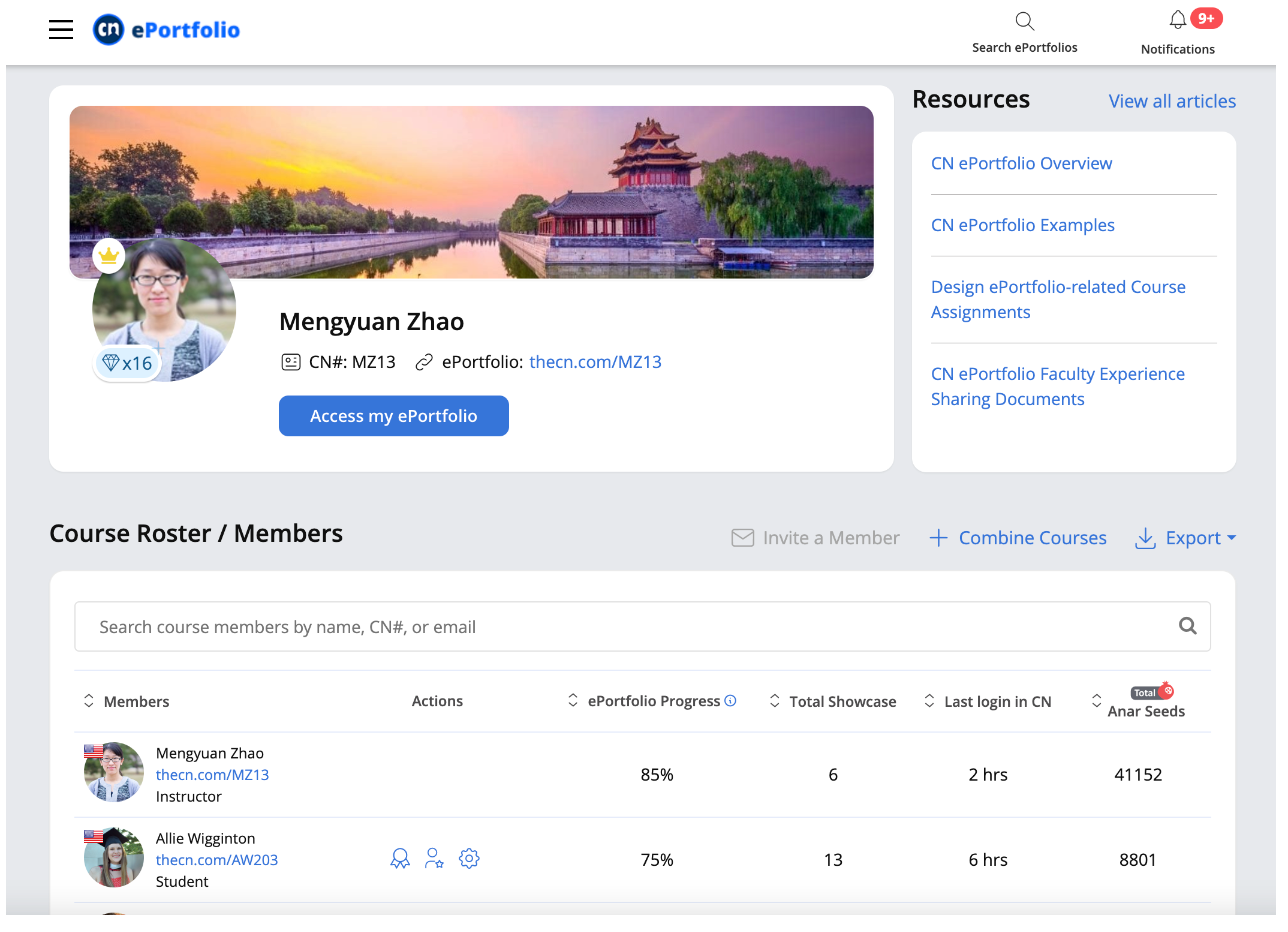

Step 5: If you go back to the course page, you will be able to see the newly added external tool.
